NEW 2007 Up Crusader 4.3L 5.0L 5.7L 6.2L Fuel Injector RA087007A Set of 8

New Design With Higher Flow Rates
$149.95

Availability: 489 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

This Is Original Equipment Merchandise.

Don't Be Fooled By Knock-offs or "OEM FIT PARTS"



NEW ORIGINAL FACTORY PARTS

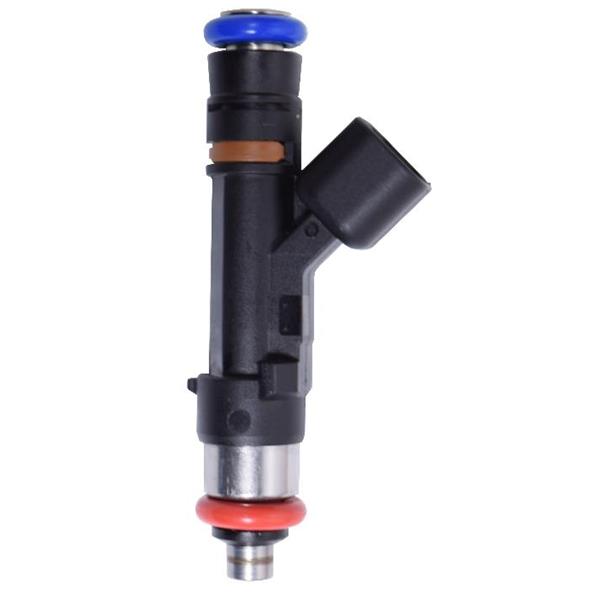

This is an Original Fuel Injector

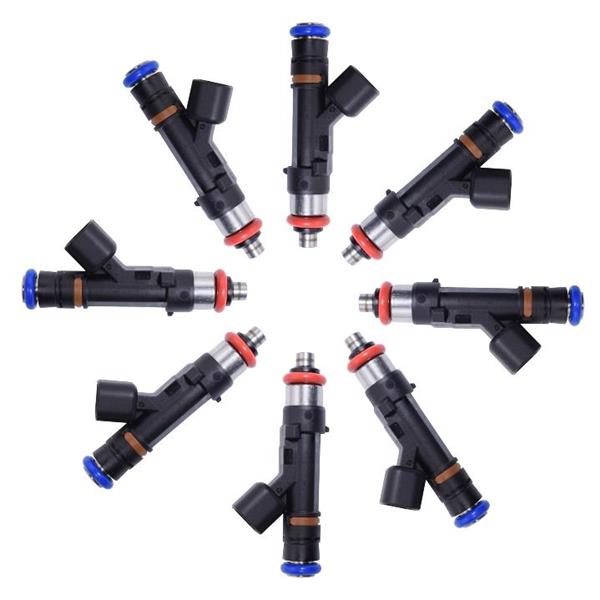

Set of 8

Fits:

2007 and Up CRUSADER

 5.0L, 5.3L, 6.2L Engines

NEW DESIGN

Please See Chart Below


Part# 12609192
RA087007A


Interchange # RA087007
879312003, 21141691, 0 280 156 081

Bosch Fuel Injectors, flow rates & injector connectors

Bosch fuel injectors have broad market coverage for both OE and after market applications.

Fuel injector performance can be affected by particles as little as 10 microns (0.01mm) and the main causes of fuel injector wear or failure is contamination of the fuel system and corrosion due to moisture in the fuel. Cleaning fuel injectors by pulsing them thousands of times while they are in an ultrasonic cleaner and then testing them for spray patterns and injector flow rate is the only true and reliable method for cleaning injectors.

The Bosch fuel injector flow rates below are based on flow testing with our fuel injector testing equipment and does not necessary reflect those of others.


Note: Unless otherwise stated test pressure is 3 Bar or 42.5 PSi.

Bosch fuel injectors flow rates

OHM’s

CC/Min

Lb/hr

0 280 158 165 ( NEW STYLE 2007 - UP) 879312003

12.4

282

26.8

Model/HP Year Serial Number Range
4.3L MPI 262/ V-6 2007-2013 1A064825 and Up
5.0L MPI 305/ V-8 2007-2013 1A064825 and Up
5.0L MPI DTS 305/ V-8 2007-2013 1A064825 and Up
350 Mag MPI 350/ V-8 2007-2013 1A064825 and Up
350 Mag MPI DTS 350/ V-8 2007-2013 1A064825 and Up
350 Mag MPI Horizon 350/ V-8 2007 1A064825-1A089999
350 Mag MPI Horizon DTS 305/ V-8 2007 1A064825-1A089999
350 Mag MPI Horizon MIE 350/ V-8 2007 1A064825-1A089999
350 Mag MPI Horizon MIE DTS 350/ V-8 2007 1A064825-1A089999
350 Mag MPI MIE 350/ V-8 2007 1A064825-1A089999
350 Mag MPI MIE DTS 350/ V-8 2007 1A064825-1A089999
350 Mag MPI Ski 350/ V-8 2007 1A064825-1A089999
5.7L MPI Horizon MIE 350/ V-8 2008-2013 1A090000 and Up
5.7L MPI Horizon DTS MIE 350/ V-8 2008-2013 1A090000 and Up
5.7L MPI MIE 350/ V-8 2008-2013 1A300000 and Up
5.7L MPI DTS MIE 350/ V-8 2008-2013 1A300000 and Up
5.7L MPI Ski 350/ V-8 2008-2013 1A300000 and Up
377 Mag 377/ V-8 2008-2013 1A300000 and Up
377 Mag DTS 377/ V-8 2008-2013 1A300000 and Up
MX 6.2L MPI 377/ V-8 2007 1A064825-1A299999
MX 6.2L MPI DTS 377/ V-8 2007 1A064825-1A299999
MX 6.2L MPI Horizon 377/ V-8 2007 1A064825-1A299999
MX 6.2L MPI Horizon DTS 377/ V-8 2007 1A064825-1A299999
MX 6.2L MPI Horizon MIE 377/ V-8 2007-2013 1A064825 and Up
MX 6.2L MPI Horizon MIE DTS 377/ V-8 2007-2013 1A064825 and Up
MX 6.2L MPI MIE 377/ V-8 2007-2013 1A064825 and Up
MX 6.2L MPI MIE DTS 377/ V-8 2007-2013 1A064825 and Up


CAN BE USED IN PLACE OF
# 3858969 AND 0 280 156 081

SAE the Best Deals on eBAY

Please check with you dealership or your original parts for compatibility.

Specifications

Condition New
Brand BOSCH
Manufacturer Part Number 0 280 156 081
Interchange Part Number 12609192, 0280158165, 879312003, 21141691
